CS9100 and RCD510

[Larry]

Dear Sir,
I have bought dedicated video interface for RCD510 and also the CS9100 GPS box here at car-solutions for a VW Passat 2010.
After installation I can not get touch screen function for CS9100 on the orginal RCD510 screen.
So, since the installation manual has contradctory information on how to connect the NAVI TOUCH out , I'd like you to please explain:
1. Where should be connected the other end of the three white and one green wire supplied cable that comes with the Video interface, which one end is supposed to be connected (acc. to the installation manual supplied with the Video interface, pages10 and 20) to the NAVI touch output on the daughter board of the Video Interface?
2. On the other hand, in the same manual, on page 24, thre is this diagram which shows the connections between the Video and the interface withoout the NAVI TOUCH cable attached to it.
So please, clarify.
3. By solving this connection issue, the CS9100 will work on touch screen mode on the RCD original touch screen, or I would have to install another touch glass/flexible in order to have the touch scren functionality on the CS9100 through a USB controller for example?
Please clarify.
Best Regards,
Larry

[Germes]

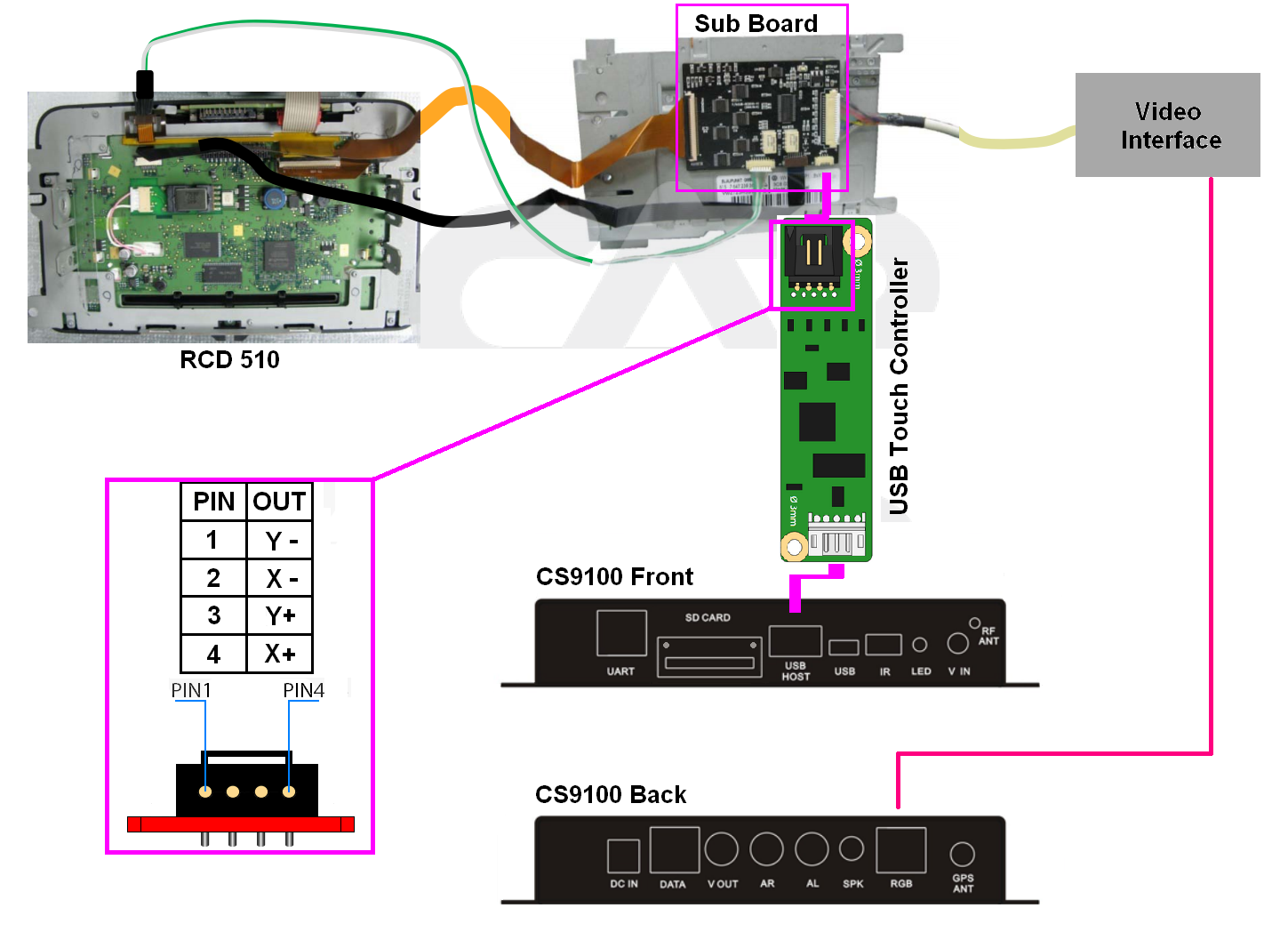

827697_CS9100_RGB_cable_v1.0_EN.pdf

(571.79 KiB) Downloaded 2877 times

[Larry]

Dear Germes,
Sorry for the delay for this review. Thanks for the graphics showing the connections.It was of great assistance. I used it and now I have the touch screen capability fully working on my VW RCD510.
Also I WANT TO TAKE THE OPPORTUNITY to make a question regarding the use of a Garmin MAP INSTEAD OF THE FACTORY INSTALLED iGO8.
I have gARMIN the map in a different SD memory card, and after insert it on the unit the CS9100 sw didn~t load. I assume this happens because there is a software together with the iGO8 maps that makes the whole system works.
If I install the Garmin map in the original SD card the CS9100 system would work (question).
Tks in advance

[Larry]

Last update,

I tried Garmin map in the card provided together with the CS9100. Didn't work neither.
I assume Garmin works at CS9100 as advertised at the webpage, but needs some setup, which is not described by Car-solutions.
So, please is there somebody who can explain me how to make it work?

Am I asking to much?
