CS9200RV Lexus LS430 2005

CS9200/CS9200RV navigation box with video input for OEM and aftermarket monitors.

Moderator: Germes

CS9200RV Lexus LS430 2005

Postby snnar » 12 Mar 2013, 15:09

Hello
I have a CS9200RV
I tried installed for Lexus LS430 2005 Installation Guide for CS9100 device for Lexus Before 2005.
wires different colors and name
The picture shows the main menu show
Panel was chosen (Lexus)
Touch does not respond
No voice
Universal Touch Screen sw 5 on
Please provide me installation guide for device CS9200RV same colors (RGB - DATA)

Thank you
snnar

Posts: 23
Joined: 16 Aug 2012, 05:07
Location: ksa
Car: toyota

Re: CS9200RV Lexus LS430 2005

Postby Chortenia » 12 Mar 2013, 18:43

Hello!

Please, provide the photos of the head unit and navigation unit from the back side (where the contactors are situated).

Best regards,
Car Solutions Team
Best regards,
Car Solutions Team
User avatar
Chortenia
CarSolutions Team

Posts: 510
Joined: 17 Sep 2010, 17:06
Location: Lviv, Ukraine
Location: Ukraine
Car: Chery Kimo

Re: CS9200RV Lexus LS430 2005

Postby snnar » 14 Mar 2013, 02:39

hi
Best regards
Attachments
snnar

Posts: 23
Joined: 16 Aug 2012, 05:07
Location: ksa
Car: toyota

Re: CS9200RV Lexus LS430 2005

Postby Chortenia » 14 Mar 2013, 11:03

Hello!

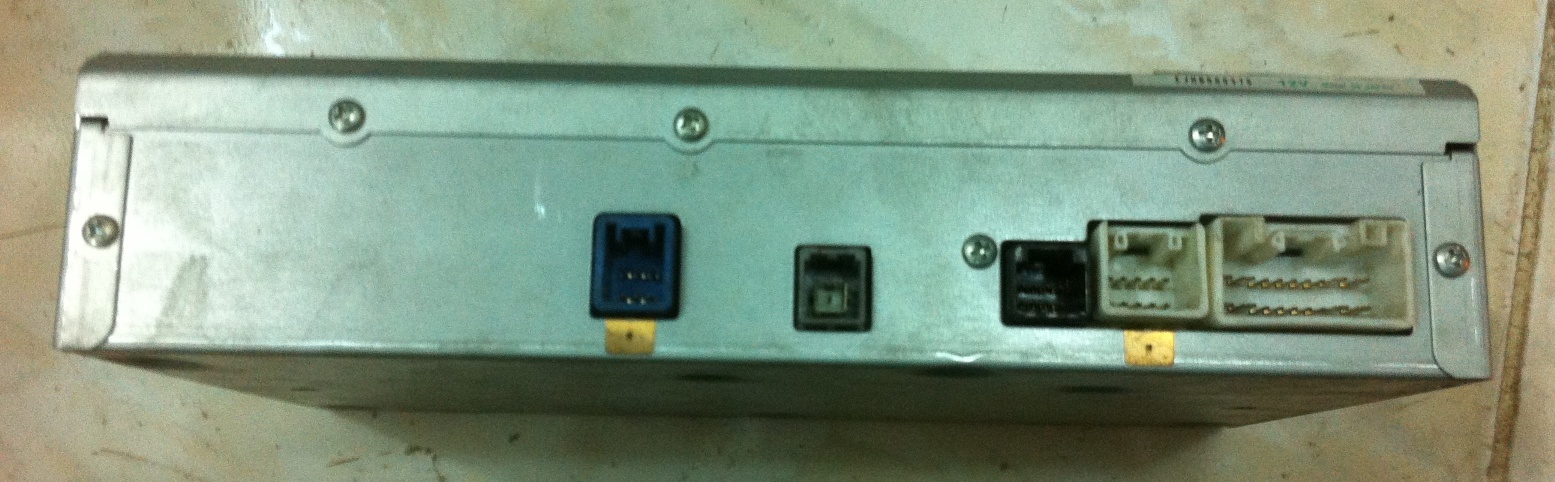

Please, provide the photos of the equipment you received.
You used the wrong (very old) manual for installation.

Here is the current one.

All our CS9200 navigation boxes we sell are prepared for usage?

What colours of wires you mean? It is mentioned in the manual that colours of wires may not coincide with the real ones. These colours are used for more convenient reading of the connection diagram).
You should have mentioned to the manager the car on which you are going to install the box. If you had done this you would have received the cables set for Plug&Play connection.

Best regards,
Car Solutions Team
Best regards,
Car Solutions Team
User avatar
Chortenia
CarSolutions Team

Posts: 510
Joined: 17 Sep 2010, 17:06
Location: Lviv, Ukraine
Location: Ukraine
Car: Chery Kimo

Re: CS9200RV Lexus LS430 2005

Postby snnar » 21 Mar 2013, 18:48

Hello
Used the same manual for installation on the site

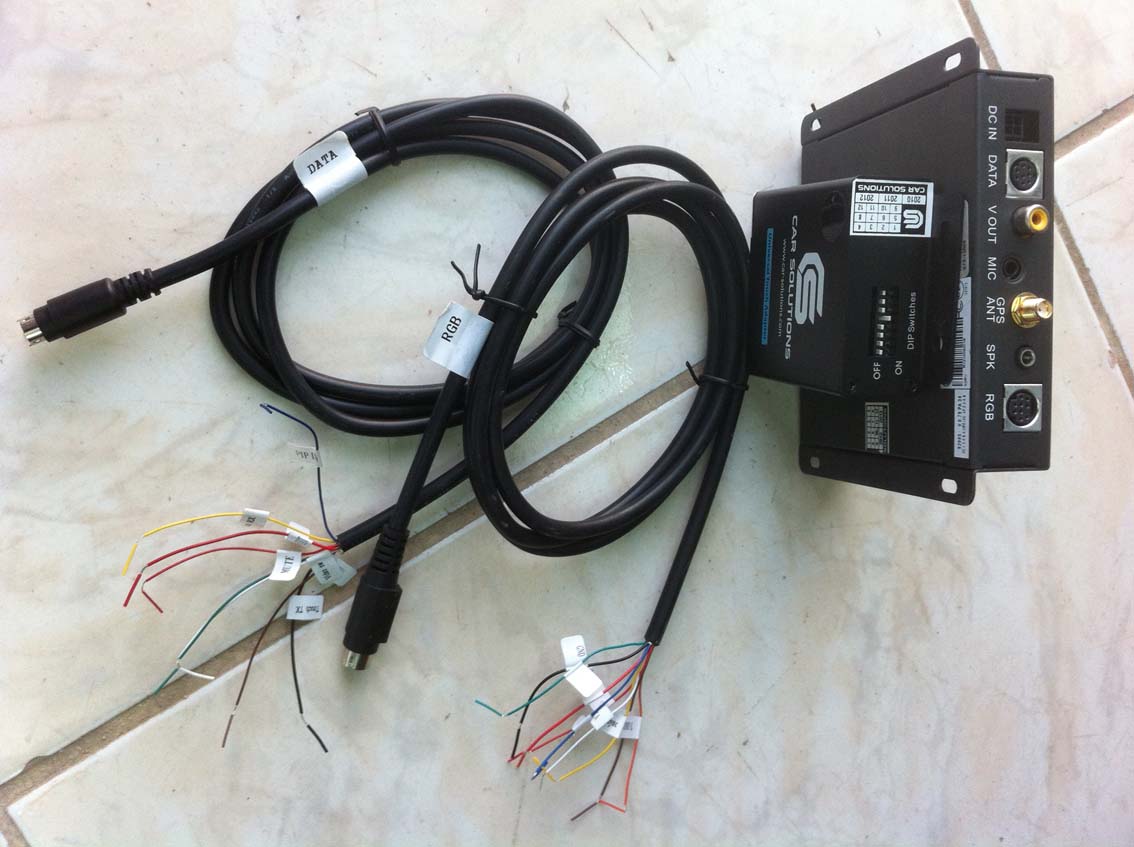

Attachments photo equipment
Thank you
Attachments
snnar

Posts: 23
Joined: 16 Aug 2012, 05:07
Location: ksa
Car: toyota

Re: CS9200RV Lexus LS430 2005

Postby snnar » 29 Mar 2013, 22:02

Hello
A week ago, I have not received an answer
I hope speed of answer
Thank yo
snnar

Posts: 23
Joined: 16 Aug 2012, 05:07
Location: ksa
Car: toyota

Re: CS9200RV Lexus LS430 2005

Postby Chortenia » 01 Apr 2013, 10:50

Hello!

We've given you the manual. The wires are marked and signed. Connect according to the manual.

Best regards,
Car Solutions
Best regards,
Car Solutions Team
User avatar
Chortenia
CarSolutions Team

Posts: 510
Joined: 17 Sep 2010, 17:06
Location: Lviv, Ukraine
Location: Ukraine
Car: Chery Kimo

Re: CS9200RV Lexus LS430 2005

Postby marwan22 » 14 May 2013, 14:26

any body share us about Lexus LS430 2005
marwan22

Posts: 1
Joined: 14 May 2013, 14:22
Location: dubai
Car: toyota

Re: CS9200RV Lexus LS430 2005

Postby Chortenia » 14 May 2013, 15:25

Please, provide the photos of your navigation box from the connectors side so we can tell whether CS9200 navigation box fits your car.
Best regards,
Car Solutions Team
User avatar
Chortenia
CarSolutions Team

Posts: 510
Joined: 17 Sep 2010, 17:06
Location: Lviv, Ukraine
Location: Ukraine
Car: Chery Kimo


Return to CS9200 Navigation Box
